Axle Type | Maximum Axle Load (105km/h) | Bearing Type | Wheel Track (SP) | Axle Tube | Wheel Hub-Rim Connection | Rim Edge Surface | Remarks | |
Model | 105(km/h)Max,Capacity | Bearing Type | Track | Axle Beam | Stud | P.C.D | Steel Turn Position | Note |
kg | mm | mm | mm | mm | mm | |||

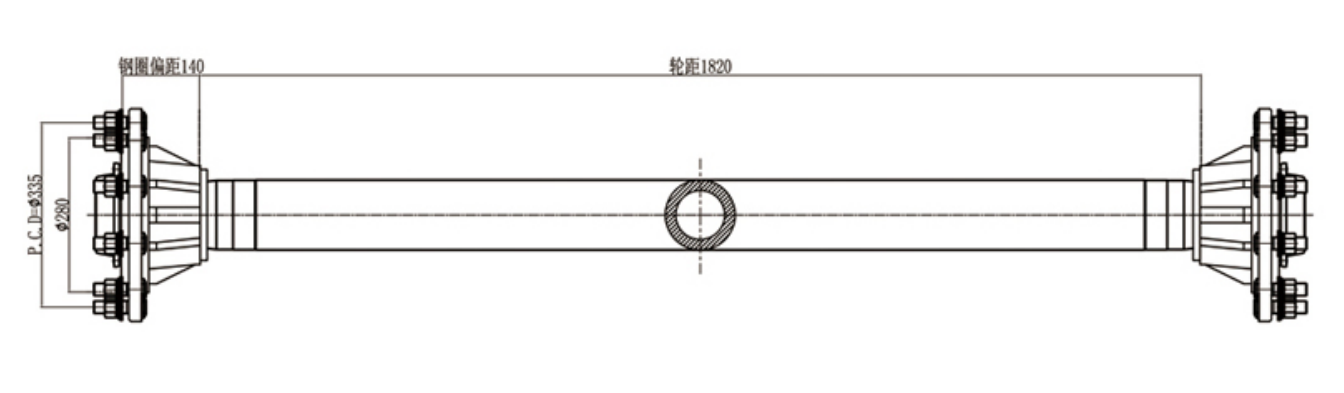

FDS | 13000 | 518445 | 1820 | φ127×19 | 10×M22×1.5ISO | φ335 | φ280 | |
Available for ABS System. Track size is available to customer's requirements
A: Germany Type Axle
B: American Type Axle
